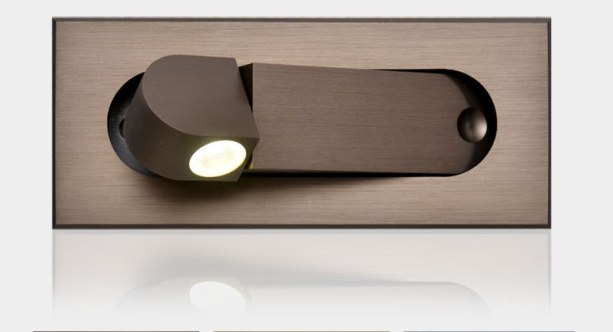

WL-B10 · photograph of the production unit
WL-B10 — LED LIGHTING · LINE B10 OF 15
Headboard Reading Light
Fold-out reading light · 360° stop-anywhere · 3 W · CRI > 90

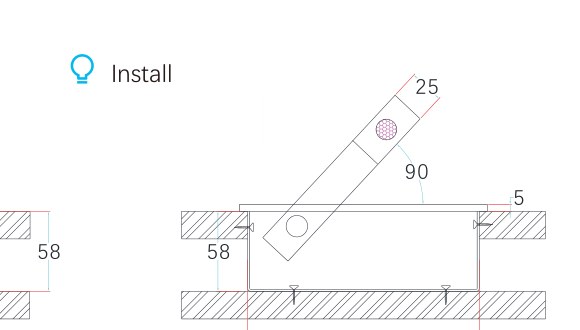

A reading light that disappears into the headboard. The machined aluminium body sits flush in a 180 × 60 mm rebate; swing it out to any angle, it stops where you leave it, and folds flat into the panel when not in use. Runs straight off AC mains, so no driver space is needed inside the furniture.
- CCT2700 / 3000 / 4000 / 6500 K, fixed at order
- CRI> 90
- ModelWL-B10
Specification
| Model | WL-B10 |
|---|---|
| Housing | Aluminium, brushed finish |

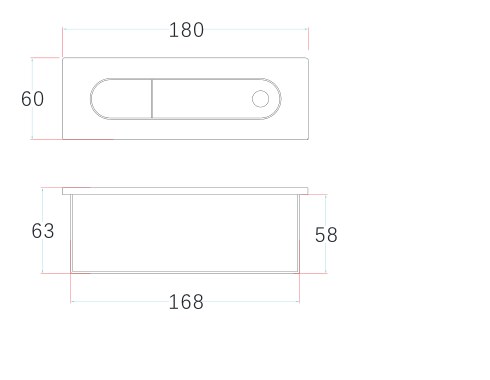

| Size | 180 × 60 × 45 mm · cut-out 168 × 58 × 43 mm |
| Light source | SMD 3030 · 3 W |
| Luminous flux | 180 lm |
| CRI | > 90 |
| Colour temperature | 2700 / 3000 / 4000 / 6500 K, fixed at order |
| Voltage | AC 100–240 V, 50/60 Hz |
| Control | Wall switch (on/off) |
| Finish | Coffee brown · bronze · silver |
| Mounting | Recessed, two fixing screws |
| Rated life | 30,000 h L70 |
Indicative values. Final photometrics, dimensions and tolerances are confirmed on the approval drawing for your project before tooling.
Built into the detail
- Aluminium profile housing with excellent heat dissipation
- High-gloss brushed finish, matched to the furniture hardware
- 360° rotation — stops at any angle, stays there
- Large-chip SMD 3030 design for stable output and long life
Options & finishes
| Finish | Coffee brown · bronze · silver — samples on request |
|---|---|
| CCT | Fixed at order: 2700 / 3000 / 4000 / 6500 K |
| Switch | Wall switch · touch dimmer on the body (option) |
Standards & warranty
| Colour consistency | ≤ 3-step MacAdam ellipse (SDCM 3) per bin |
|---|---|
| Photometrics | IES file issued per model · TM-30 report on request |
| Lifetime | L70 > 50,000 h at Ta 25 °C · L80 / B10 on request |
| Operating range | Ta −20 … +40 °C |
| Electrical class | Class II driver · Class III at 24 V |
| Certification | CE · UL · SAA (whole luminaire) · RoHS / REACH declaration per model |
| Warranty | 5 years, LED module and driver |
Imperial equivalents (W/ft, lm/ft) and dimmer compatibility lists are issued on the datasheet. Warranty terms are confirmed in the quotation.
SAMPLE & SPECIFICATION
Ask for WL-B10
Send the furniture drawing and the room count. We reply with a proposal, a lead time and a sample schedule — within one business day.
- Sample in your specified finish
- Photometric file, wiring diagram and cut-out drawing
- Volume price from 200 pcs per model
