WL-B11 — LED LIGHTING · LINE B11 OF 15
Wardrobe Rod Light
Illuminated clothes rail · Ø 31.75 mm · up to 1.5 m · 12/24 V
The wardrobe hanging rail is the light. A Ø 31.75 mm aluminium rod with a full-surface PC diffuser replaces the standard closet rail and lights the clothes from directly above, with no dark areas and no visible points. Length is made to the cabinet and adjusts 2–5 mm on installation; a door-contact or PIR sensor switches it as the door opens.
- CCT1800–6500 K
- CRI> 90
- IPIP20 (interior use)
Specification
| Model | WL-B11 (SMD engine) · WL-B11C (COB engine) |
|---|---|
| Light source | SMD 2835, 120 LEDs/m · COB 480 LEDs/m |
| Diameter | Ø 31.75 mm |

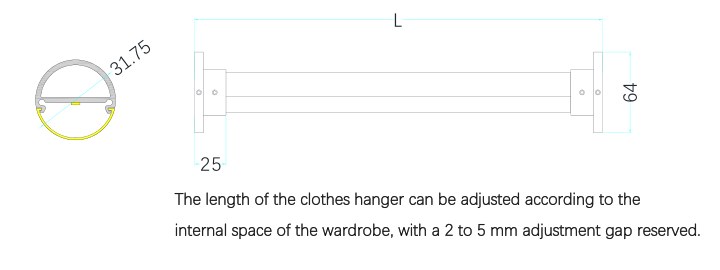

| Length | 300–1500 mm, to cabinet; 2–5 mm adjustment gap |
| Power | 9.8 W (SMD) · 8 W (COB) |
| Luminous flux | 600 lm (SMD) · 450 lm (COB) |
| Colour temperature | 1800–6500 K |
| CRI | > 90 |
| Chips | OSRAM |
| Voltage | DC 12 V / 24 V |
| Control | Door-contact sensor · PIR · wall switch |

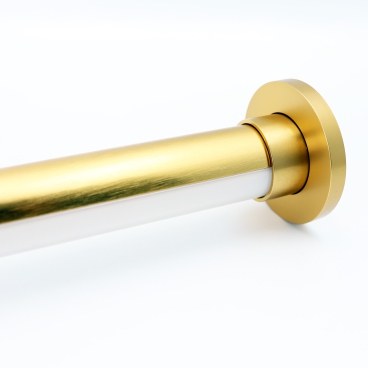

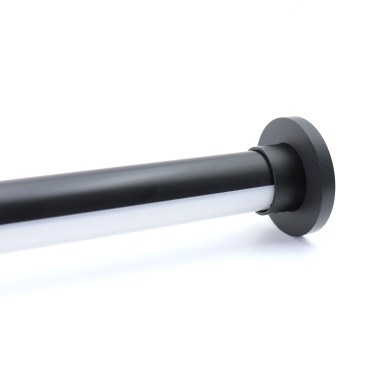

| Finish | Gold · black · silver |
| Ingress protection | IP20 (interior use) |
| Rated life | 50,000 h (LM80) |
Indicative values. Final photometrics, dimensions and tolerances are confirmed on the approval drawing for your project before tooling.
Built into the detail
- Thickened aluminium body — sturdy, doubles as the clothes rail
- PC diffuser with an extremely large light-emitting surface, uniform without dark areas
- Custom length up to 1.5 m, 2–5 mm adjustment gap on installation
- Low voltage 12/24 V with optional sensing switch; OSRAM chips, LM80, 50,000 h
Options & finishes
| Length | To cabinet drawing, up to 1500 mm |
|---|---|
| Finish | Gold · black · silver |
| Light engine | SMD (brighter) · COB (continuous line) |
| Control | Door-contact · PIR sensor · wall switch · dimmable driver |
Standards & warranty
| Colour consistency | ≤ 3-step MacAdam ellipse (SDCM 3) per bin |
|---|---|
| Photometrics | IES file issued per model · TM-30 report on request |
| Lifetime | L70 > 50,000 h at Ta 25 °C · L80 / B10 on request |
| Operating range | Ta −20 … +40 °C |
| Electrical class | Class II driver · Class III at 24 V |
| Certification | CE · UL · SAA (whole luminaire) · RoHS / REACH declaration per model |
| Warranty | 5 years, LED module and driver |
Imperial equivalents (W/ft, lm/ft) and dimmer compatibility lists are issued on the datasheet. Warranty terms are confirmed in the quotation.
SAMPLE & SPECIFICATION
Ask for WL-B11
Send the furniture drawing and the room count. We reply with a proposal, a lead time and a sample schedule — within one business day.
- Sample in your specified finish
- Photometric file, wiring diagram and cut-out drawing
- Volume price from 200 pcs per model
