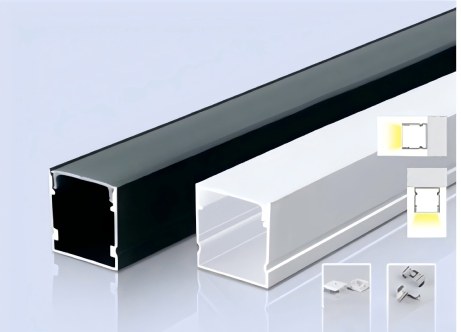

WL-B12 · photograph of the production unit
WL-B12 — LED LIGHTING · LINE B12 OF 15
Seamless Headboard Linear Light
20×20 mm · three-side emission · seamless splice up to 3 m · SMD or COB
Headboard lighting with no visible joints. A 20 × 20 mm aluminium profile that butt-joints end to end — no seam, no dark gap — so the light line runs the full width of the headboard, or up to 3 m, as one continuous band. Three sides emit from a slim section; choose the SMD engine for maximum output or COB for a perfectly even line. Low-voltage 12/24 V, dimmable, made to the panel length.
- CCT1800–6500 K (SMD) · 2700–6500 K (COB)
- CRI> 90
- ModelWL-B12 (SMD engine) · WL-B12C (COB engine)
Specification
| Model | WL-B12 (SMD engine) · WL-B12C (COB engine) |
|---|---|

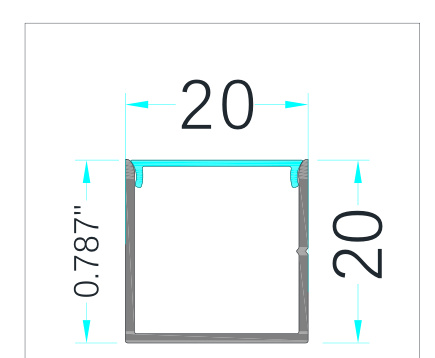

| Profile | 20 × 20 mm aluminium, silver |
| Diffuser | PC, frosted (clear optional) |
| Length | Custom, up to 3000 mm · seamless splice |

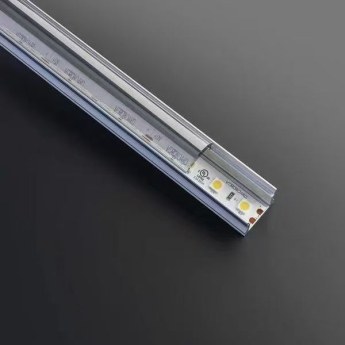

| Light source | SMD 2835, 120 LEDs/m · COB, 480 LEDs/m |
| Power | 9.8 W/m |
| Luminous flux | 650 lm/m (SMD) · 500 lm/m (COB) |
| Colour temperature | 1800–6500 K (SMD) · 2700–6500 K (COB) |
| CRI | > 90 |
| Voltage | DC 12 / 24 V |
| Dimming | Yes, with a compatible driver |
| Emission | Three sides |

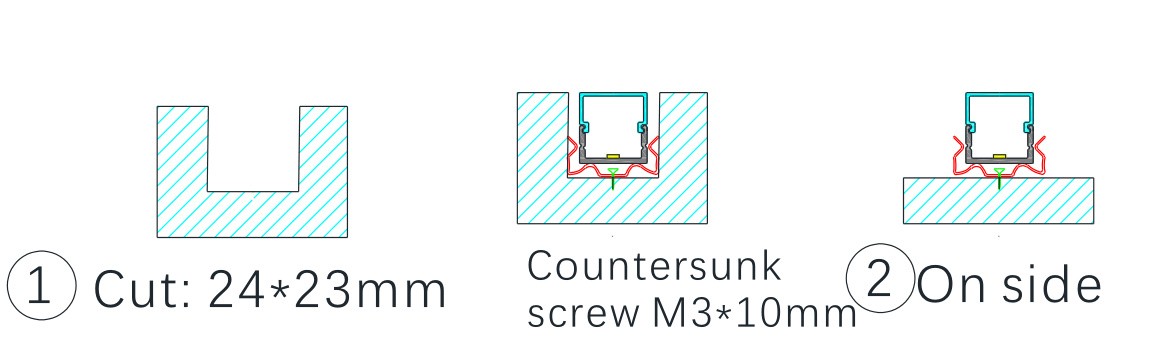

| Mounting | Recessed (cut 24 × 23 mm) · countersunk M3 × 10 · surface on side |
Indicative values. Final photometrics, dimensions and tolerances are confirmed on the approval drawing for your project before tooling.
Built into the detail
- Seamless butt-joint: profiles join end to end with no visible line or dark gap
- 20 × 20 mm aluminium shell with high heat dissipation
- Three illuminated sides — a wider wash from a slim section
- PC diffuser, frosted or clear; custom length up to 3 m
- DC 12/24 V low voltage, dimmable — safer wiring inside the panel
Options & finishes
| Light engine | SMD (brighter) · COB (continuous line) |
|---|---|
| Diffuser | Frosted · clear |
| Length | To the headboard drawing, up to 3000 mm |
| Control | Wall switch · door/PIR sensor · dimmable driver |
Standards & warranty
| Colour consistency | ≤ 3-step MacAdam ellipse (SDCM 3) per bin |
|---|---|
| Photometrics | IES file issued per model · TM-30 report on request |
| Lifetime | L70 > 50,000 h at Ta 25 °C · L80 / B10 on request |
| Operating range | Ta −20 … +40 °C |
| Electrical class | Class II driver · Class III at 24 V |
| Certification | CE · UL · SAA (whole luminaire) · RoHS / REACH declaration per model |
| Warranty | 5 years, LED module and driver |
Imperial equivalents (W/ft, lm/ft) and dimmer compatibility lists are issued on the datasheet. Warranty terms are confirmed in the quotation.
SAMPLE & SPECIFICATION
Ask for WL-B12
Send the furniture drawing and the room count. We reply with a proposal, a lead time and a sample schedule — within one business day.
- Sample in your specified finish
- Photometric file, wiring diagram and cut-out drawing
- Volume price from 200 pcs per model
