Shelf Linear Light

Specification

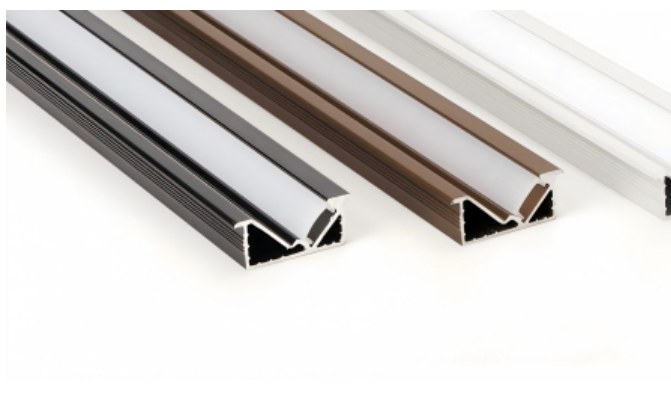

Model	WL-B13
Housing	Aluminium V-profile, silver finish
Diffuser	PC, frosted (clear on request)

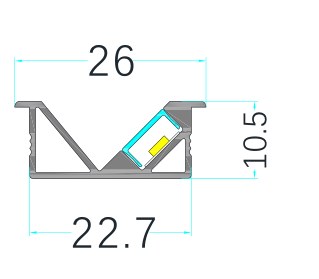

Size (W × H)	26 × 10.5 mm (SMD) · 25 × 10.5 mm (COB)
Cut-out	25 × 12 mm rebate, countersunk M3 × 10
Light source	SMD 2835, 120 LED/m · 9.8 W/m · 650 lm/m — or COB, 480 LED/m · 9.8 W/m · 500 lm/m
CRI	> 90
Colour temperature	2400–6500 K (SMD) · 2700–6500 K (COB), fixed at order
Voltage	DC 12 V / 24 V
Control	Dimmable — on/off, PWM or 0/1-10 V per project
Rated life	50,000 h (LM80)

Indicative values. Final photometrics, dimensions and tolerances are confirmed on the approval drawing for your project before tooling.

Built into the detail

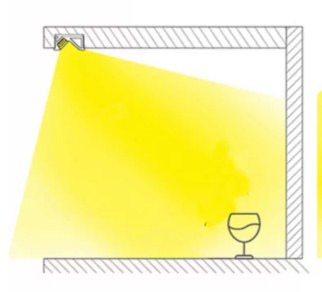

• V-shaped aluminium profile, three-side emission — shelf above and surface below from one fitting

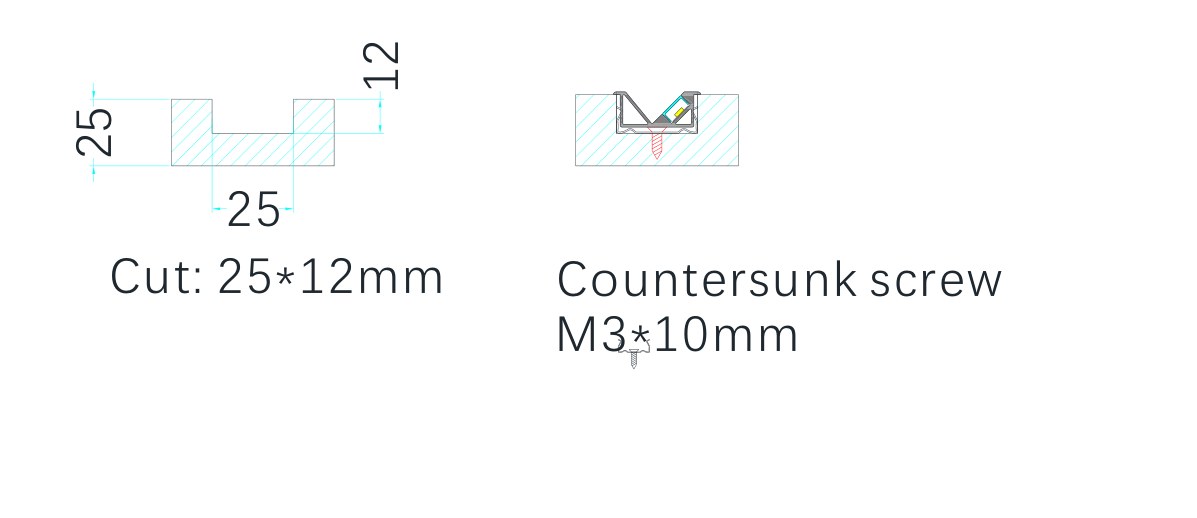

• Recessed into a 25 × 12 mm rebate, fixed with countersunk M3 × 10 screws
• SMD 2835 (120 LED/m · 650 lm/m) or COB (480 LED/m · 500 lm/m), dot-free behind the frosted diffuser
• DC 12 / 24 V, dimmable, CRI > 90, LM80 > 50,000 h
• Made to the shelf programme up to 3,000 mm — cut, wired and connectorised at the factory

Options & finishes

Finish	Silver body, frosted PC diffuser · clear diffuser on request
Chips	SMD 2835 (higher output) · COB (dot-free line)
Length	Made to shelf programme, up to 3,000 mm
Voltage	DC 12 V · DC 24 V

Standards & warranty

Colour consistency	≤ 3-step MacAdam ellipse (SDCM 3) per bin
Photometrics	IES file issued per model · TM-30 report on request
Lifetime	L70 > 50,000 h at Ta 25 °C · L80 / B10 on request
Operating range	Ta −20 … +40 °C
Electrical class	Class II driver · Class III at 24 V
Certification	CE · UL · SAA (whole luminaire) · RoHS / REACH declaration per model
Warranty	5 years, LED module and driver

Imperial equivalents (W/ft, lm/ft) and dimmer compatibility lists are issued on the datasheet. Warranty terms are confirmed in the quotation.
