Slim Surface Linear Light

Specification

Model	WL-B14
Housing	Aluminium, silver finish
Diffuser	PC, frosted (clear on request)
Size (W × H)	17 × 8 mm
Cut-out (recessed)	21 × 9 mm rebate
Light source	SMD 2835, 120 LED/m · 12 W/m · 800 lm/m — or COB, 338 LED/m · 9.8 W/m · 600 lm/m
CRI	> 90
Colour temperature	1800–10000 K (SMD) · 2700–6500 K (COB), fixed at order
Voltage	DC 12 V / 24 V
Control	Dimmable — on/off, PWM or 0/1-10 V per project
Mounting	Surface-mount clip or recessed, per furniture detail
Rated life	50,000 h (LM80)

Indicative values. Final photometrics, dimensions and tolerances are confirmed on the approval drawing for your project before tooling.

Built into the detail

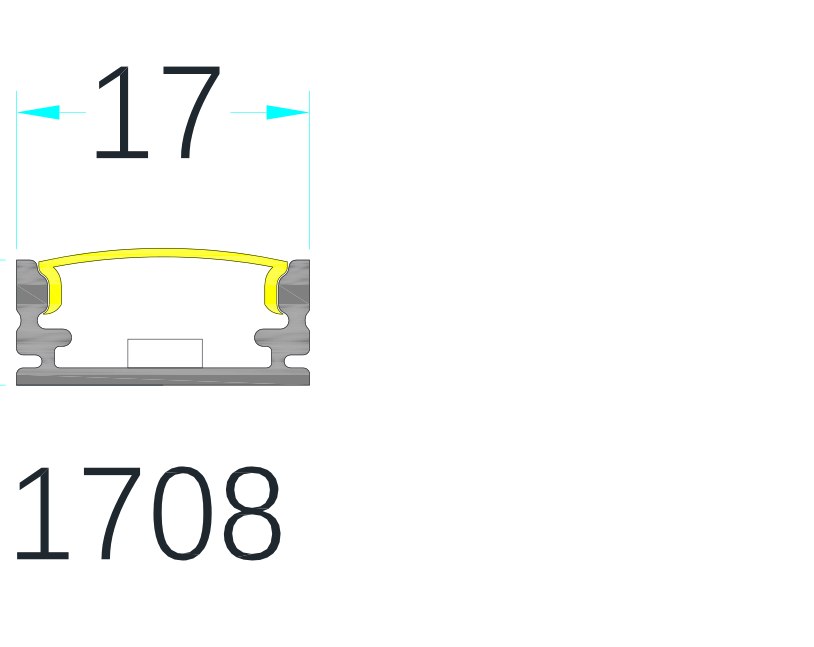

• 17 × 8 mm aluminium profile — the slimmest surface-mount line in the range

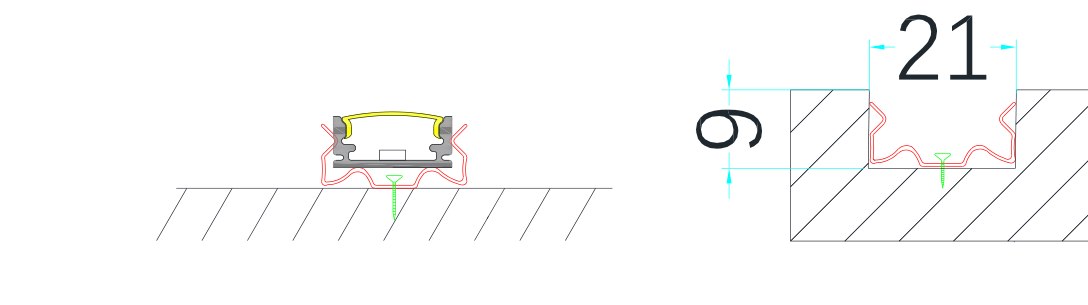

• Mounts two ways: surface-fixed on the clip, or recessed into a 21 × 9 mm rebate

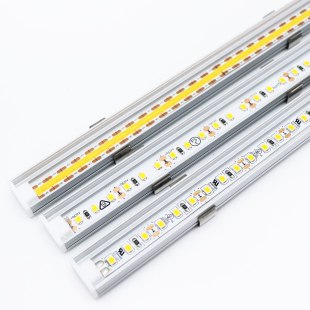

• SMD 2835 (120 LED/m · 12 W/m · 800 lm/m) or COB (338 LED/m · 9.8 W/m · 600 lm/m)
• Frosted PC diffuser for a continuous line · clear on request
• DC 12 / 24 V, dimmable, CRI > 90, LM80 > 50,000 h

Options & finishes

Finish	Silver body, frosted PC diffuser · clear diffuser on request
Chips	SMD 2835 (higher output) · COB (dot-free line)
Length	Made to furniture programme, up to 3,000 mm
Voltage	DC 12 V · DC 24 V

Standards & warranty

Colour consistency	≤ 3-step MacAdam ellipse (SDCM 3) per bin
Photometrics	IES file issued per model · TM-30 report on request
Lifetime	L70 > 50,000 h at Ta 25 °C · L80 / B10 on request
Operating range	Ta −20 … +40 °C
Electrical class	Class II driver · Class III at 24 V
Certification	CE · UL · SAA (whole luminaire) · RoHS / REACH declaration per model
Warranty	5 years, LED module and driver

Imperial equivalents (W/ft, lm/ft) and dimmer compatibility lists are issued on the datasheet. Warranty terms are confirmed in the quotation.
