Recessed Linear Light

Specification

Model	WL-B15
Housing	Aluminium, silver finish
Diffuser	PC, frosted (clear on request)
Size (W × H)	25 × 8 mm

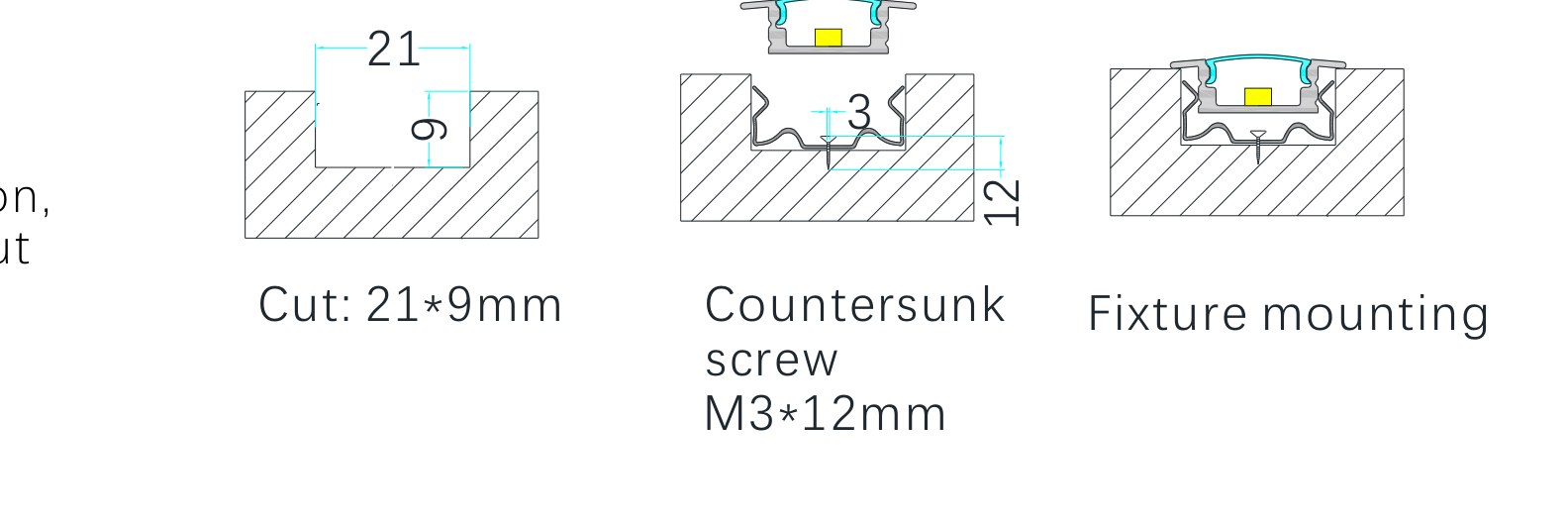

Cut-out	21 × 9 mm rebate, countersunk M3 × 12
Light source	SMD 2835, 120 LED/m · 12 W/m · 800 lm/m — or COB, 338 LED/m · 9.8 W/m · 600 lm/m
LED brand	OSRAM, LM80 > 50,000 h
CRI	> 90
Colour temperature	1800–10000 K (SMD) · 2700–6500 K (COB), fixed at order
Voltage	DC 12 V / 24 V
Control	Dimmable — on/off, PWM or 0/1-10 V per project
Ingress	IP20

Indicative values. Final photometrics, dimensions and tolerances are confirmed on the approval drawing for your project before tooling.

Built into the detail

• 25 × 8 mm recessed profile — flanged edges bridge the rebate for a clean line
• Recessed into a 21 × 9 mm rebate, fixed with countersunk M3 × 12 screws
• OSRAM LEDs, LM80 > 50,000 h · IP20

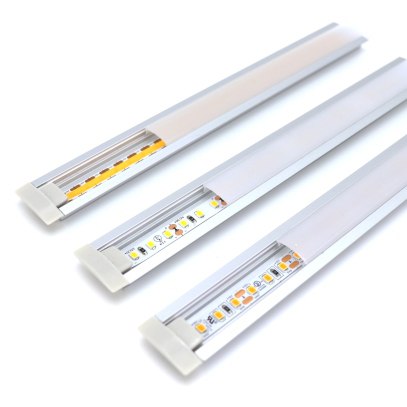

• SMD 2835 (120 LED/m · 12 W/m · 800 lm/m) or COB (338 LED/m · 9.8 W/m · 600 lm/m)
• DC 12 / 24 V, dimmable, CRI > 90

Options & finishes

Finish	Silver body, frosted PC diffuser · clear diffuser on request
Chips	SMD 2835 (higher output) · COB (dot-free line)
Length	Made to furniture programme, up to 3,000 mm
Voltage	DC 12 V · DC 24 V

Standards & warranty

Colour consistency	≤ 3-step MacAdam ellipse (SDCM 3) per bin
Photometrics	IES file issued per model · TM-30 report on request
Lifetime	L70 > 50,000 h at Ta 25 °C · L80 / B10 on request
Operating range	Ta −20 … +40 °C
Electrical class	Class II driver · Class III at 24 V
Certification	CE · UL · SAA (whole luminaire) · RoHS / REACH declaration per model
Warranty	5 years, LED module and driver

Imperial equivalents (W/ft, lm/ft) and dimmer compatibility lists are issued on the datasheet. Warranty terms are confirmed in the quotation.
