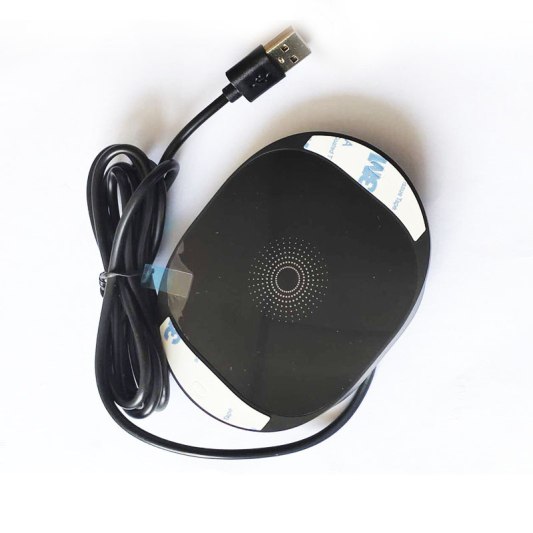

Long-Range Hidden Wireless Charger

Specification

Model	WL-D2
Housing	ABS, textured, black

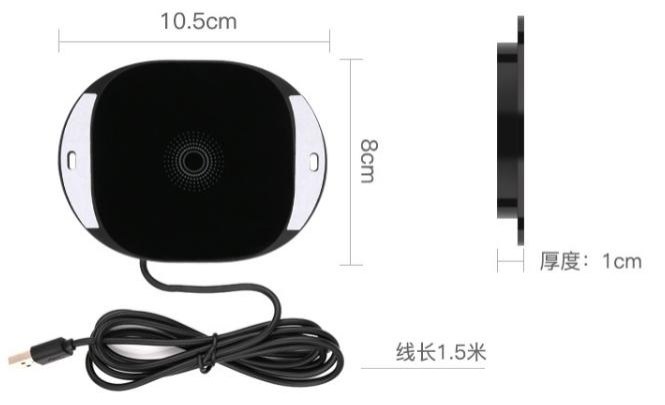

Size (Ø × H)	Ø 105 × 10 mm
Mounting	Under the top — adhesive pad or screws, no cut-out
Surface	Marble · timber · plastic (non-metal tops)
Standard	Qi wireless charging · 105–205 kHz
Output	10 W · conversion efficiency > 70%
Charging distance	Max 25 mm · best at 10–15 mm (varies by phone)
Input	DC 5 V / 2 A · 1.5 m lead, 4-pin
Compatible phones	iPhone · Samsung · Xiaomi · Huawei (Qi-enabled)
Protection	Over-current · over-temperature

Indicative values. Final photometrics, dimensions and tolerances are confirmed on the approval drawing for your project before tooling.

Built into the detail

• Hidden under the top — no cut-out, no trim ring, top stays intact

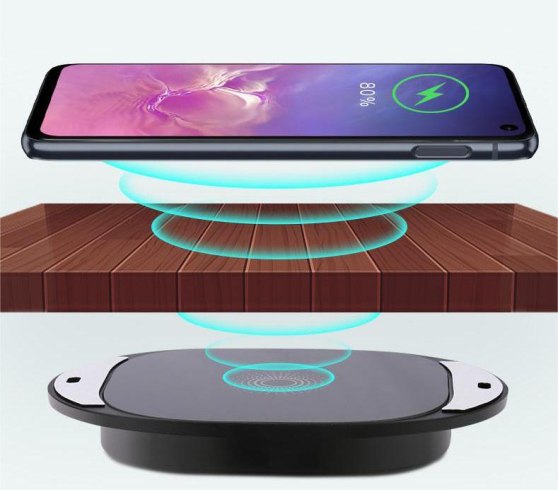

• Charges through up to 25 mm of marble, timber or plastic (best at 10–15 mm)
• 10 W Qi wireless charging, 105–205 kHz
• Adhesive or screw fixing under the surface; 1.5 m lead to the furniture supply
• Over-current and over-temperature protection on a smart control chip

Options & finishes

Fixing	Adhesive pad · screws
Charging head	Qi charging heads to destination-market standard
Cable	1.5 m 4-pin lead, wired to the furniture power line

Standards & warranty

Colour consistency	≤ 3-step MacAdam ellipse (SDCM 3) per bin
Photometrics	IES file issued per model · TM-30 report on request
Lifetime	L70 > 50,000 h at Ta 25 °C · L80 / B10 on request
Operating range	Ta −20 … +40 °C
Electrical class	Class II driver · Class III at 24 V
Certification	CE · FCC (charger module) · RoHS / REACH declaration per model
Warranty	5 years, LED module and driver

Imperial equivalents (W/ft, lm/ft) and dimmer compatibility lists are issued on the datasheet. Warranty terms are confirmed in the quotation.
